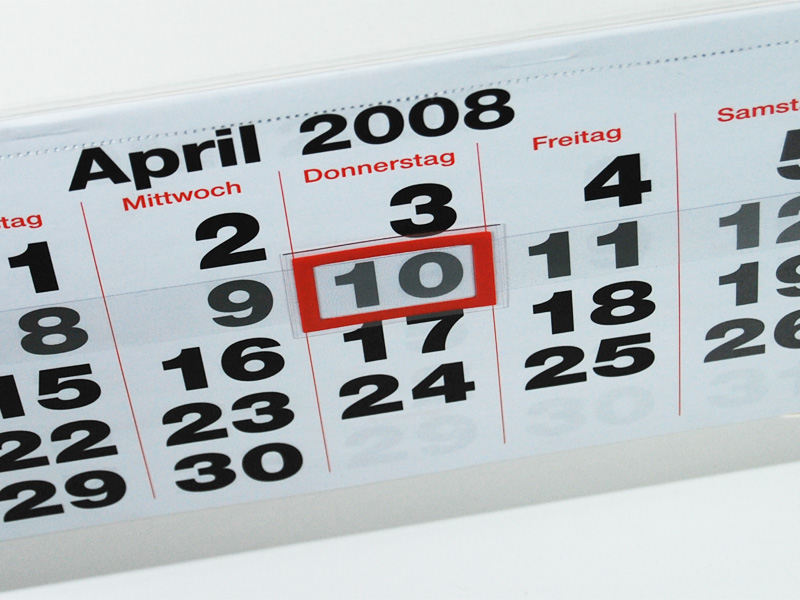

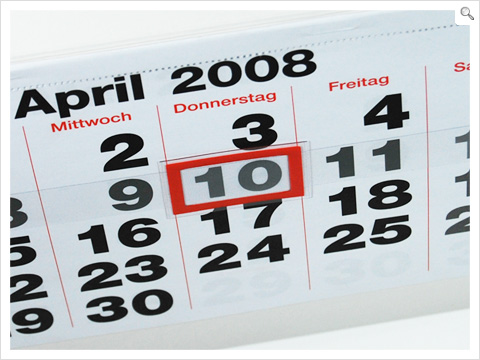

Slotted Date Window




Click on the small picture to enlarge the picture. For a more detailed view click on the large picture.


Scope of Delivery:   Window, soft PVC band and holder
Handling: The window is fitted with a slot through which the carrier band is fed. With this version the print is on the frame.
Assembly: If required, the date indicators can be supplied pre-assembled.
Minimum
quantities:		 Dependant on the design
Delivery time: On request
Colours: Rot RAL 2002  Red RAL 2002 and "on request".
Window size:   Sorted according to size  |  Sorted according to article number
Outside (mm) Inside (mm)
Nr. Height Width Height Width
43 7,5 7,5 4 4
38 9 9 5 5
44 9,6 12,2 6,4 9
22 12 14 8 10
23 12 18 8 13
32 12 11 7 7
27 14 12 10 6
1 16 18 10 12
18 16 20 12 15
36 16 14 10 8
39 16 16 10 10
41 16 24 10 18 Other sizes are possible,
25 17 38 11 30 but causes tool costs!
12 18 31 12 25 Please ask us!
30 18 18 12 13
2 20 23 14 15
6 20 26 14 20
21 20 15 13 8
11 22 34 14 24
3 24 26 16 18
17 24 35 16 27
34 24 20 18 14
49 24 38 17 30
10 25 46 17 38
14 26 33 16 25
8 28 35 19 26
20 28 35 21 28
7 30 38 20 30
16 30 43 22 35
19 30 41 22 33
24 30 27 22 19
31 30 50 20 39
40 30 34 20 28
42 30 33 20 25
48 31 26 23 18
13 32 55 22 45
4 33 38 23 30
9 35 50 27 42
26 35 43 27 35
35 35 47 27 39
46 35 31 29 25
45 36 39 28 31
47 38 38 30 30
5 40 45 30 35
15 40 30 30 20
33 41 49 33 41
29 44 52 32 45
37 45 45 37 37
28 50 68 39 58

[x] Close
extern (mm) intern (mm)
Nr. Height Width Height Width
1 16 18 10 12
2 20 23 14 15
3 24 26 16 18
4 33 38 23 30
5 40 45 30 35
6 20 26 14 20
7 30 38 20 30
8 28 35 19 26
9 35 50 27 42
10 25 46 17 38
11 22 34 14 24
12 18 31 12 25 Other sizes are possible,
13 32 55 22 45 but couses tool costs!
14 26 33 16 25 Please ask us!
15 40 30 30 20
16 30 43 22 35
17 24 35 16 27
18 16 20 12 15
19 30 41 22 33
20 28 35 21 28
21 20 15 13 8
22 12 14 8 10
23 12 18 8 13
24 30 27 22 19
25 17 38 11 30
26 35 43 27 35
27 14 12 10 6
28 50 68 39 58
29 44 52 32 45
30 18 18 12 13
31 30 50 20 39
32 12 11 7 7
33 41 49 33 41
34 24 20 18 14
35 35 47 27 39
36 16 14 10 8
37 45 45 37 37
38 9 9 5 5
39 16 16 10 10
40 30 34 20 28
41 16 24 10 18
42 30 33 20 25
43 7,5 7,5 4 4
44 9,6 12,2 6,4 9
45 36 39 28 31
46 35 31 29 25
47 38 38 30 30
48 31 26 23 18
49 24 38 17 30

[x] Close
